Iron Base Raw material comply with MPIF standard

Products Details

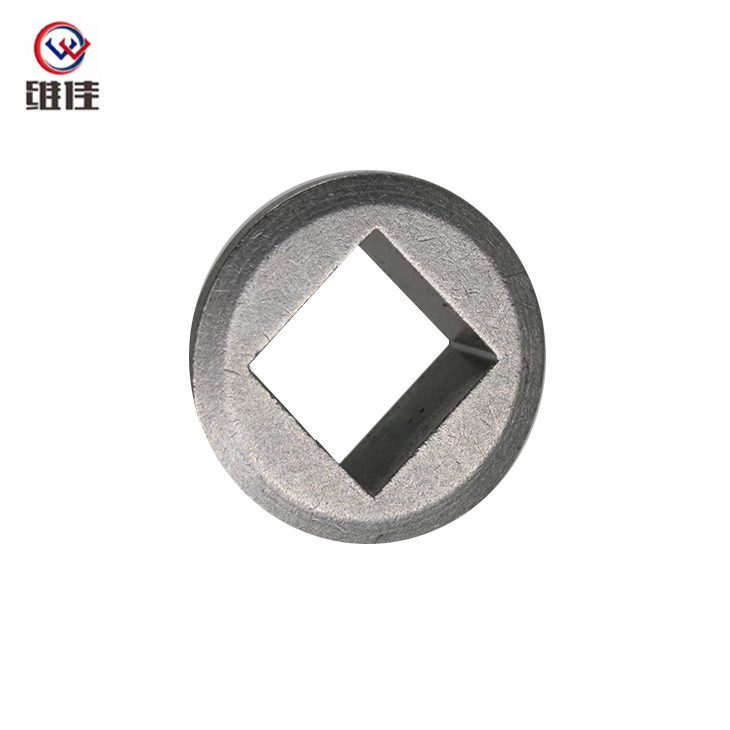

iron bearing


Fe; FeCu


Sleeve, Flanged,Spherical,Miniature,Trust Washer, Rod


1) inner 3-70mm, also can according to your request


inner packing: plastic bag
outer packing: carton, pallet
Specific load capacity dynamic: 5 N/mm²
Sliding speed: 6.0 [ m/s ]
Friction value: 0,05 to 0,20 [ µ ]
Temperature strain: -40 to +200 [ °C ]
Bronze Bushing Hardness: HB 30-145
 Yield Stength: 15,000 PSI
Elongation: 1%
Oil Centent: 18-22% (V)
Density: 6.4-7.3 g/cm³


Oil-impregnated; Self-lubricating
Good thermal conductivity property
Noise much less than other bearing
Suitable for high static load
Can be applied in widely temperature
material porosity is controllable,homogeneity of material,without macrosegregation(after solidification,there are no different chemical compositions in diffrent parts of the alloy due to the macroscopic flow of liquid alloys),disposable molding
wet friction properties

Other Terms

Quality Standards: ISO9001
Shipment: By Sea / Air
Sliding Bearing HS-Code:8483300090
Specification: Standard tolerance of inside diameter G7 Standard tolerance of outside diameter S7 Recommend shaft tolerance f7/g6 Recommend housing tolerance H7 Raw material comply with MPIF standard 1.All material source from Tisco, and other natioanl steel factories 2.Plenty of stock in year round 3.Different raw material providers to make sure fast supply 4.Strict raw material inspection Human based management 1.The average working experience from management board is 15 years 2.Staff turnover less than 10% 3.Engineers with more than 10 years experience 4.Professional after sales service
